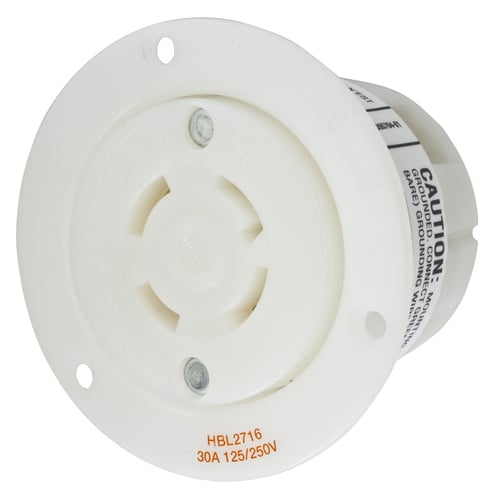

Hubbell Hubbell HBL2716
Hubbell HBL2716
Kirby Risk #: 485111
UPC: 78358503921, 783585039213, 00783585039213
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R,Screw Terminal, White
Modified Industry Description
30A 125/250V FLANGE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2716 Flanged Single Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#12 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA L14-30R
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Flanged Single
|
| Voltage Rating |
125/250
|
| Wattage |
7.5k
|
