Hubbell Hubbell HBL2463

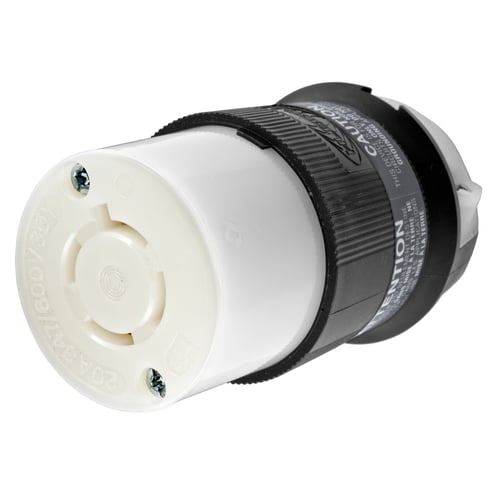

Hubbell HBL2463
Kirby Risk #: 484717
UPC: 78358503844, 783585038445, 00783585038445
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 3-PhaseWye 277/480V AC, 4-Pole 4-Wire Non-Grounding, L20-20R, Screw Terminal, Black and White
Modified Industry Description
4 WIRE, 20A, 600V - 3 POLE - LOCKING FEMALE CONNECTOR
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2463 3-Phase Isolated Non-Grounding Female Connector, 347Y/600 VAC, 20 A
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Conductor Range |
#12AWG - #10AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L20-20R
|
| NEMA_Rating |
L20-20R
|
| Number Of Conductors |
4-Wire Non-Grounding
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Poles |
4
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75 DEG C; Minimum Continuous: -40 DEG C w/o impact, -25DEG with impact.
|
| Type |
Insulgrip
|
| Voltage Rating |
600
|
