Hubbell Hubbell HBL2436
Hubbell HBL2436
Kirby Risk #: 484651
UPC: 78358503834, 783585038346, 00783585038346
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 20A Phase Delta 480V AC, 3-Pole 4-Wire Grounding,L16-20R, Screw Terminal, White
Modified Industry Description
20A 480V - WHITE FLANGED RECEPTACLE, 3 POLE, 4 WIRE
AD Description

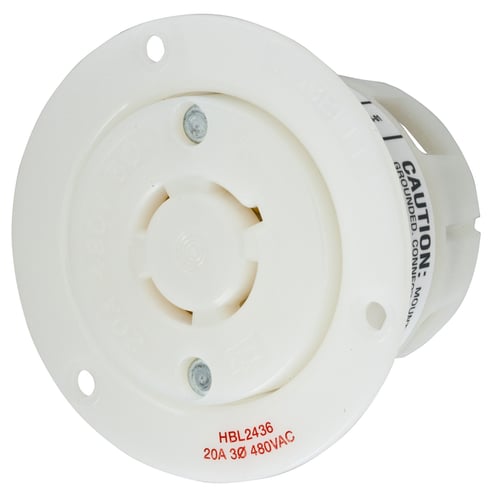

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2436 Flanged Grounding Single Locking Receptacle, 480 VAC, 20 A, 3 Poles, 4 Wires, White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4X/12/IP44
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Flanged
|
| NEMA_Configuration |
L16-20R
|
| NEMA_Rating |
NEMA L16-20R
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Flanged Grounding Single
|
| Voltage Rating |
480
|
| Wattage |
9600Watts
|
