Hubbell Hubbell HBL2353
Hubbell HBL2353
Kirby Risk #: 484461
UPC: 78358503804, 783585038049, 00783585038049
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

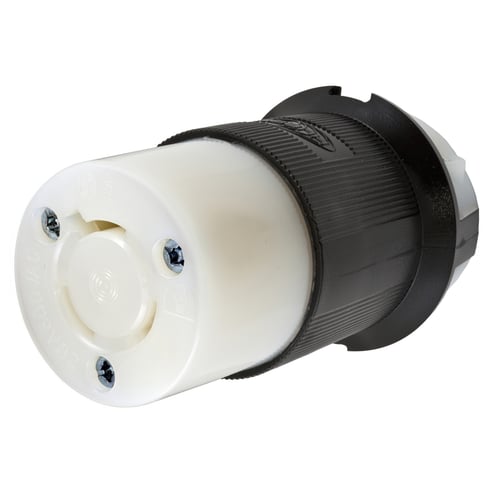

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 600V AC, 2-Pole 3-Wire Grounding, L9-20R,Screw Terminal, Black and White
Modified Industry Description
20A 600V CONN BLACK WHITE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2353 Grounding Heavy Duty Shrouded Watertight Locking Connector, 600 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
#12AWG - #10AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA L9-20R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Heavy Duty Shrouded Watertight
|
| Voltage Rating |
600
|
