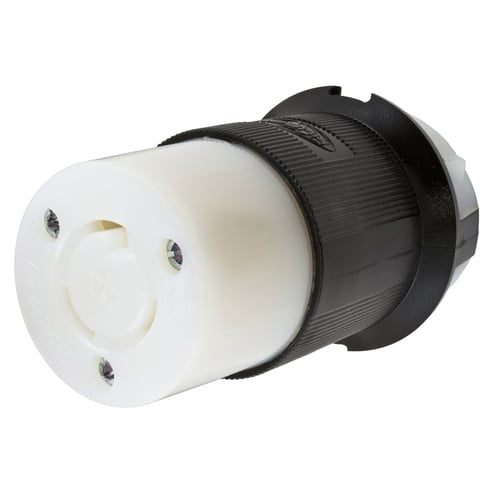

Hubbell Hubbell HBL2313


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, ScrewTerminal, Black and White

Modified Industry Description

20A 125V - LOCKING FEMALE CONNECTOR, 2 POLE, 3 WIRE

AD Description

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2313 Grounding Heavy Duty Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Conductor Range
#12AWG - #10AWG
Connection
Pressure Screw Terminal
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial/Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Configuration
L5-20R
NEMA_Rating
NEMA L5-20R
Number Of Conductors
3-Wire Grounding
Number_Of_Poles
2
Number_Of_Wires
3
Poles
2
Size
Standard
Special Features

  • #10-32 brass (green finish) multi-drive ground screw
  • #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw
  • 0.08 in (2) steel nickel plated terminal clamp
  • 20 A, 12 AWG terminal accommodation
  • Brass contact spring
  • Brass spring binding plate, 0.031 in (0.8) brass ground contact
  • Certified for current interrupting at full rated current
  • Clear polycarbonate terminal retainer
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Molded-in or stamped on ratings, withstands 2000 VAC minimum dielectric voltage
  • Natural white nylon body contact carrier material
  • Natural white nylon cord clamp material
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
  • Steel, zinc plated multi-drive body holding screw
  • Steel, zinc plated multi-drive cord clamp screw
  • Superior cord grip design protects terminations from excess strain
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Heavy Duty
Voltage Rating
125
