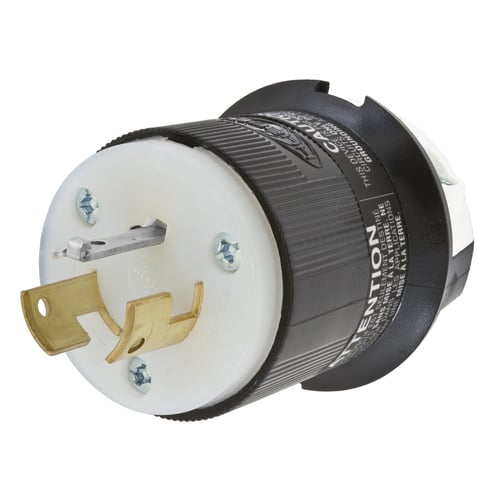

Hubbell Hubbell HBL9965C


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 20A 125/250V, 3-Pole 3-Wire Non Grounding, Non-NEMA, ScrewTerminal, Black and White

Modified Industry Description

20A 125/250V - LOCKING MALE PLUG, 3 POLE, 3 WIRE

AD Description

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL9965C Non-Grounding Locking Plug, 125/250 VAC, 20 A, 3 Poles, 3 Wires, Black/White

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Connection
Screw Terminal
Conductor Size
14 to #10AWG
Cord_Type
All Listed Portables
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Configuration
Non NEMA
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
3
Phase
Single
Poles
3
Size
Standard Sized
Special Features

  • 14 to 10 AWG wire
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Brass blade, terminal screw and ground screw
  • Clear and funnel shaped wire entry for ease of termination
  • Clear polycarbonate terminal retainer
  • Indoor dry unless protected by additional means
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Natural white nylon blade holder material, cord clamp material
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Steel nickel plated terminal clamp
  • Superior cord grip design protects terminations from excess strain
  • Withstands 2000 VAC dielectric voltage
Standard
UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Non-Grounding
Voltage Rating
125/250
Wattage
5000
