Hubbell Hubbell H0509

Name: Hubbell H0509
Brand: Hubbell
SKU: 483939
Price: 9.12 USD
Availability: InStock

Hubbell H0509

Kirby Risk #: 483939

UPC: 78358503422, 783585034225, 00783585034225

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Liquid TightSystem, 90 Degree Male Liquid Tight Connector, 1/2", Steel

Modified Industry Description

KELLEMS KELLEMS HUBB GIRING DEVICE 1

AD Description

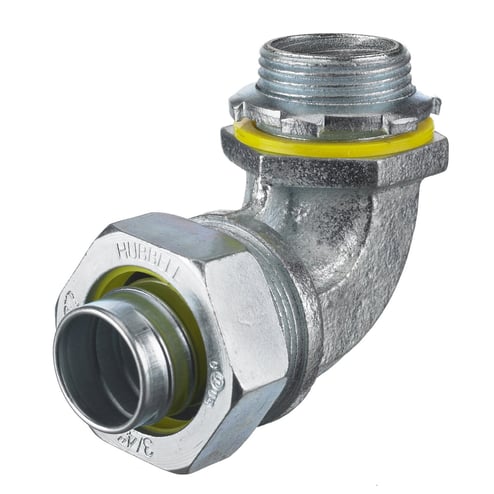

Wiring Device-Kellems H0509 Non-Insulated Male Liquidtight Conduit Connector With Locknut, 1/2 in Trade, 90 deg, Steel, Metallic

Application	90 Degree Male
Brand Name	Hubbell
Color	Metallic
Connection	Cap Nut
Country of Origin	CN
Environmental_Conditions	Suitable for use in wet locations when a listed sealing ring is used between box and fitting
Finish	Metallic
Insulation	Non Insulated
Material	Steel
Mounting	Between Enclosure and Conduit
NEMA_Rating	Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
Special Features	-51 to 538 deg C operating temperature 0.59 in L thread Hexagonal, screw-machined steel thru 1 in and malleable iron on larger sizes Locknut has hardened steel tangs to grip securely Non integral, reusable steel ferrule is easily installed, to seal conduit NPT male thread connection Nut compresses gland-ring onto conduit Nylon gasket provides liquidtight seal at hub Split, nylon, gland-ring compresses conduit onto ferrule Tapered, machined threads fasten securely and provide additional liquidtight sealing Threaded one-piece steel body
Standard	UL 898D and UL899D
Sub_Brand	Hubbell Wiring Device-Kellems
Trade_Size	1/2
Type	Non-Insulated Male
Width_2	8.2000
Width_3	9.4000
