Hubbell Hubbell HBL5262ISA
Hubbell HBL5262ISA
Kirby Risk #: 483823
UPC: 78358506013, 783585060132, 00783585060132
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

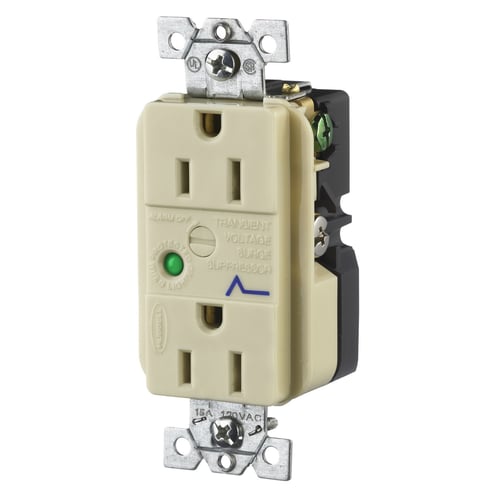

Hubbell Wiring Device Kellems, Surge Protective Devices, SPIKESHIELDTVSS Duplex Receptacle with Light and Alarm, 15A 125V, 5-15R, Ivory
Modified Industry Description
15A 125V RECPT BLUE SURGE W/ALARM
AD Description
Wiring Device-Kellems SpikeShield® Circuit Guard® HBL5262ISA Decorator Duplex Specification Grade Standard Surge Protection Receptacle With Light, Alarm, 125 VAC, 15 A, 60 Hz, 1 Phase
Vendor Description
Hubbell® offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell® SPD receptacles are two 22 mm square MOVs providing 240 J of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all glass, conformably coated PC board provides superior moisture immunity for longer life in humid environments.
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Decorator Duplex with Light and Alarm
|
| Brand Name |
Hubbell
|
| Color |
Ivory
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Frequency_Rating |
60
|
| Material |
Composite
|
| Mounting |
Mounting Screws
|
| Operating_Temperature |
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
|
| Outlet |
Straight Blade
|
| Phase |
1
|
| Response_Time |
Approx 5 ns
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 1449 3rd Edition, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type_Of_Indicators |
LED and Audible Alarm
|
| Type |
Surge Protection Receptacles
|
| Voltage Rating |
125
|
