Hubbell Hubbell HBL26516


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Female Connector Body, 60A 600V AC, 4-Pole 5-Wire Grounding, Non NEMA,Screw Terminal, Blue

Modified Industry Description

60A 600V CONN BLUE

AD Description

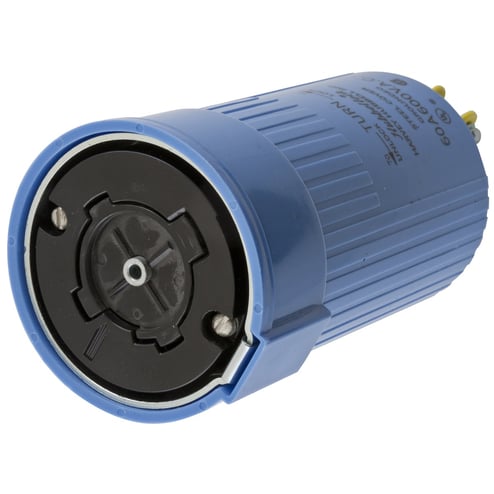

Wiring Device-Kellems Hubbellock® HBL26516 Heavy Duty Isolated Grounding Standard Sized Female Connector, 600 VAC, 60 A

Specifications

Amperage Rating
60
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Blue
Conductor Range
#6AWG
Connection
Pressure Screw Terminal
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Insulation
Insulated Body
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number Of Conductors
5-Wire Grounding
Number_Of_Poles
4
Size
Standard
Special Features

  • Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
  • Insulated, color coded metallic housing enhances safety and abuse resistance
  • Spring-loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Spring-loaded safety shutter contains arcing when mating or unmating devices under load
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type
Standard
Voltage Rating
600
