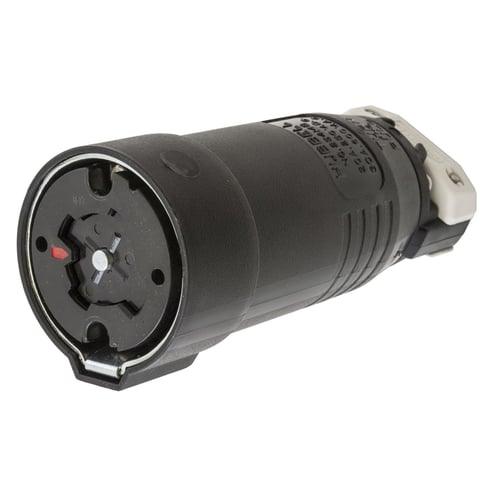

Hubbell Hubbell HBL25414B


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Female Connector Body, 30A 600V AC, 4-Pole 5-Wire Grounding, Non NEMA,Screw Terminal, Blue

Modified Industry Description

30A 600V CONN BLUE

AD Description

Wiring Device-Kellems Hubbellock® HBL25414B Heavy Duty Non-Grounding Locking Connector, 600 VAC, 250 VDC, 30/20 A, 4 Poles, 5 Wires, Black

Specifications

Amperage Rating
30/20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Conductor Range
#12AWG - #8AWG
Connection
Pressure Screw Terminal
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Insulation
Insulated Body
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number Of Conductors
5-Wire Grounding
Number_Of_Poles
4
Number_Of_Wires
5
Size
Standard
Special Features

  • 3-phase clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Grounding style connector
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Spring loaded safety shutter contains arcing when mating or unmating devices under load
  • Standard wiring style
  • Zinc plated steel terminal ground, cord clamp and body holding screw Rynite® body contact carrier, bronze contact spring and ground contact
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Heavy Duty Non-Grounding
Voltage Rating
600 VAC/250 VDC
