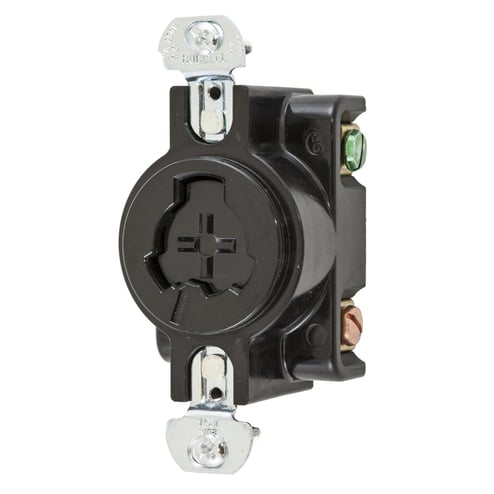

Hubbell Hubbell HBL23000G


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Flush Receptacle, 20A 125V/10A 250V DC 480V AC, 2-Pole 3-Wire Grounding,Non-NEMA, Screw Terminal, Black

Modified Industry Description

10/20A 480/240V - BLACK SINGLE RECEPTACLE

AD Description

Wiring Device-Kellems Hubbellock® HBL23000G Grounding Single Locking Receptacle, 125/480 VAC/250 VDC, 10/20 A, 2 Poles, 3 Wires, Black

Specifications

Amperage Rating
10/20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Connection
Screw Terminal
Conductor Size
#12 AWG
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Phenolic
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • 0.025 in bronze ground contact
  • 0.032 in bronze contact spring material
  • 0.05 in zinc-plated steel bridge (mounting strap)
  • 0.078 in steel nickel plated terminal clamp
  • 0.78 in zinc plated steel back plate
  • 15 A 14 AWG and 20 A 12 AWG terminal accommodation
  • Black thermoset cover (top) and base
  • Brass (green) ground screw
  • Brass rivet
  • Brass terminal screw
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Molded in or stamped on ratings
  • Permanently ink marked on product catalog number
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Spring loaded safety shutter contains arcing when mating or unmating devices under load
  • Terminals identified in accordance with UL498 (x, y, z, white, green)
  • UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
  • Withstand 2000 VAC minimum dielectric voltage
  • Zinc plated steel mounting screws
Standard
UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Single
Voltage Rating
125/480 VAC/250 VDC
Wattage
9.6k
