Hubbell Hubbell HBL26519

Name: Hubbell HBL26519
Brand: Hubbell
SKU: 483717
Price: 1448.02 USD
Availability: InStock

Hubbell HBL26519

Kirby Risk #: 483717

UPC: 78358501733, 783585017334, 00783585017334

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Male Plug, 60A 600V AC, 4-Pole 5-Wire Grounding, Non NEMA, ScrewTerminal, Blue

Modified Industry Description

60 A 600 V 4 POLE 5 WIRE GROUNDING NON NEMA LOCKING MALE PLUG

AD Description

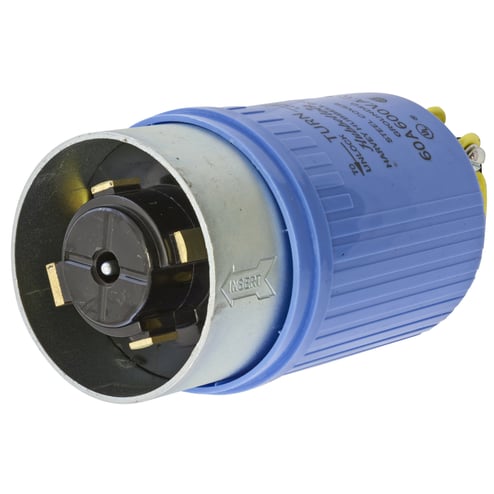

Wiring Device-Kellems Hubbellock® HBL26519 Shrouded Locking Plug, 600 VAC, 60 A, 4 Poles, 5 Wires, Blue

Amperage Rating	60
Application	Heavy Duty Industrial
Brand Name	Hubbell
Color	Blue
Connection	Pressure Terminal Screws
Conductor Size	#10 AWG to #4 AWG
Cord_Type	All Portable
Country of Origin	PR
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Grade	Industrial
Material	Polycarbonate
Mounting	Cord Mounted
NEMA_Rating	Non-NEMA
Number_Of_Poles	4
Number_Of_Wires	5
Phase	Three
Poles	4
Size	Standard Sized
Special Features	10 to 6 AWG terminal accommodation 2000 VAC minimum withstand dielectric voltage Black thermoset blade holder Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability Brass blade Certified for current interrupting at full rated current Copper lug terminals with steel set screws ground screw material Copper lug terminals with steel set screws terminal screw HB or better per UL 94 or CSA 22.2 NO 0.6 flammability Insulated, color coded metallic housing enhances safety and abuse resistance Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 Molded-in male contacts are resistant to damage and provide a consistently positive connection Neoprene sleeve cord clamp Stainless steel body holding screw Stainless steel cord clamp screw Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
Standard	UL498
Sub_Brand	Hubbell Wiring Device-Kellems
Temperature_Rating	-40 to 75
Type	Shrouded
Voltage Rating	600
