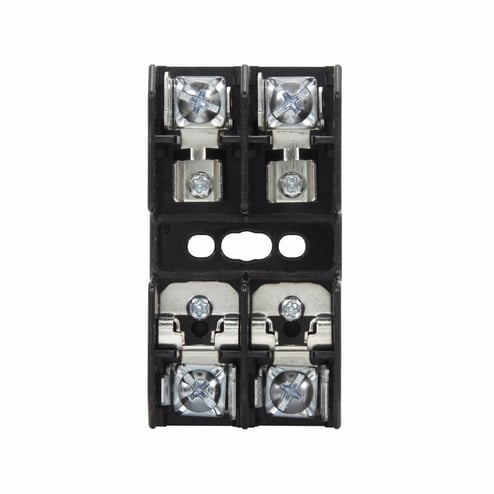

Bussmann Bussmann BC6032PQ

Modified Industry Description

FUSE BLOCK 30A 600V CLASS CC 2P

AD Description

Edison BC6032PQ BC Series Fuse Block, 600 VAC/VDC, 1/10 to 20 A, 14 to 10 AWG Wire, 2 Poles

Vendor Description

EATON Bussmann business has developed a new line of modular ferrule fuse blocks for class CC, supplemental 13/32 in x 1- 1 /2 in (10 x 38 mm) fuse, class H(K), class J, and class R fuses. The new fuse blocks are fully modular with a snap together design for tool less assembly of multiple-pole blocks at point of use while reducing inventory and assembly time. Each block has provisions for DIN rail or panel mounting that permit the same block to be used for multiple applications. The new blocks also feature optional covers that enhance electrical safety with IP20 finger safe ratings for the full wire size range of each block. safety is further improved with an enhanced lockout/tag out feature, compatible with a broad array of lock designs. Covers are available with open circuit indication to speed troubleshooting and have provisions for an optional snap-in marker label for easy circuit identification.
