Thomas & Betts Thomas & Betts 5344GR


Description

Industry Description

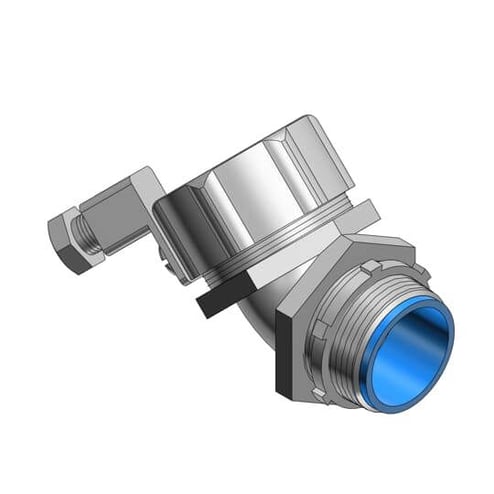

1 Inch 45 Degree Malleable Iron External Bonding Liquidtight Insulated Connector

Modified Industry Description

INSUL.45 DEG LIQUIDTITE GRD FTG 1

AD Description

T&B® 5344GR External Bonding Grounding Insulated Liquidtight Conduit Connector, 1 in Trade, 45 deg, Malleable Iron, Electro-Plated Zinc/Chromate Coated

Vendor Description

T&B® Liquidtight® Fittings for flexible conduits are suitable for a wide range of installations. Our Liquidtight® fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

Specifications

Application
To Positively Bond Conduit to Box or Enclosure
Brand Name
Thomas & Betts
Country of Origin
US
Finish
Electro-Plated Zinc/Chromate Coated
Material
Malleable Iron
Special Features

  • 3/4 in L thread
  • Ability to install quickly with low torque effort
  • Designed to accept mechanical or compression lug
  • Designed with provision to install bonding jumper in several positions
  • Used where external bonding jumper is required around liquid tight flexible metal conduit
  • Used where flexible raceway is installed in outdoor or indoor locations where exposed to continuous or intermittent moisture
Standard
UL E3060, CSA
Sub_Brand
Thomas & Betts
Trade_Size
1
Type
External Bonding Grounding Insulated
Width_2
4.1900
Width_3
4.1900
