Thomas & Betts Thomas & Betts 2446


Description

Industry Description

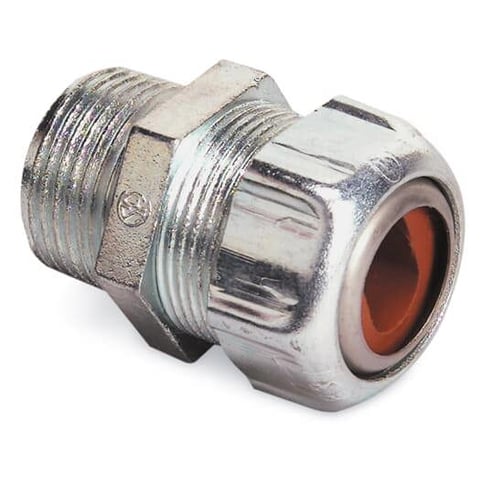

Watertight Connector for Oval Cable, Hub Size 1 1/4 Inch, Die Cast Zinc Body with Neoprene Bushing, Oval Cable Range Maximum .750 X 1.150 Inch, Minimum .565 X .965 Inch

AD Description

T&B® 2446 Watertight Cable Connector With Neoprene Bushing, 1-1/4 in Trade, 0.565 x 0.965 to 0.75 x 1.15 in Cable Openings, Die Cast Zinc, Zinc Plated

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
To Connect Underground Feeder Cables to a Box or an Enclosure
Color
Metallic
Country of Origin
CA
Dimensions
2-1/16 in L x 1-15/16 in W
Finish
Zinc Plated
Length1
6.3000
Material
Die Cast Zinc
Size
1-1/4 Inch
Special Features

  • 2-1/16 in max gland corners
  • 2-1/8 in max body corners
  • 5/8 in L thread
  • A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take up
  • Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
  • Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
  • Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
  • Rugged ribbed steel gland construction
  • Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
  • Threads on the body are tapered for water sealing
Standard
UL E15170, CSA 4484
Type
Watertight Connectors for Oval Cable
