Thomas & Betts Thomas & Betts 54905BE


Description

Industry Description

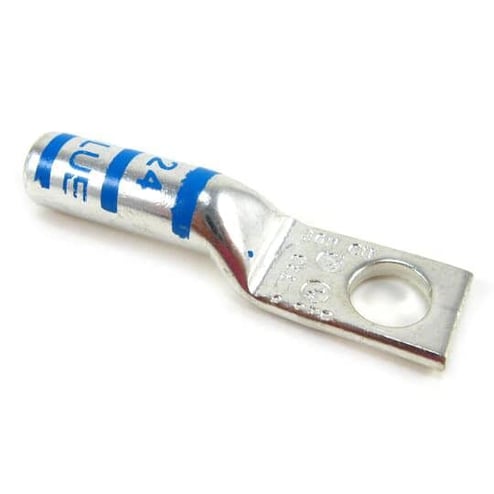

Copper One-Hole Lug, Long Barrel, Max 35kV, Wire Size #6 AWG, 1/4 Inch Bolt Size, Tin Plated, Die Code 24, Die Color Code Blue

Modified Industry Description

CU 1 HOLE LUG LONG BRL 6 AWG 1/4 BOLT BLUE

AD Description

Color-Keyed® 54905BE 54900 1-Hole Compression Lug, 6 AWG Stranded Copper Conductor, Die Code: 24, 1/4 in Stud, Copper

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Brand Name
Thomas & Betts
Cable_Size
#6 AWG
Color
Blue
Conductor Material
Copper
Conductor Size
6
Country of Origin
MX
Finish
Tin Plated
Insulation
None
Material
Copper
Number_Of_Holes
1
Package_Quantity
50
Special Features

  • 1/4 in hole center to end
  • Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
  • Connection by compression
  • Connectors have colored bands or colored dots that correspond to color markings on the dies
  • High conductivity wrought copper construction
  • High quality connection at a low installed cost
  • Tin plated finish
Standard
UL E9809
Stud_Size
1/4
Sub_Brand
Color-Keyed
Tongue_Angle
Straight
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
