Thomas & Betts Thomas & Betts TY5244MX


Description

Industry Description

Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 368.3mm (14.5 Inches), Width of 3.61mm (0.142 Inches), Thickness of 1.31mm (0.052 Inches), Tensile Strength Rating of 180 Newtons (40 Pounds)

Modified Industry Description

14 1/2 IN UV BLACK NYLON CABLE TIE WITH STAINLESS STEEL LOCKING

AD Description

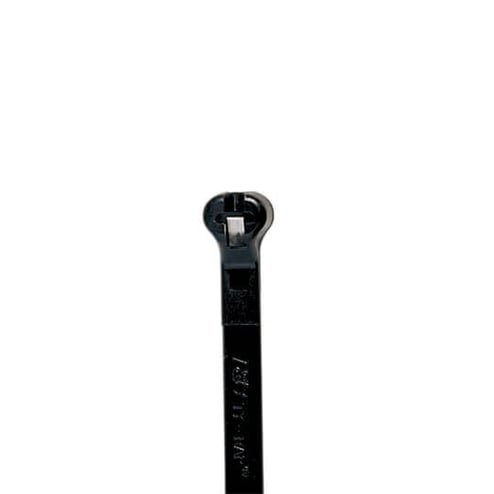

Ty-Rap® TY5244MX 2-Piece Standard Cable Tie, 14-1/2 in L x 0.142 in W x 0.05 in THK, Nylon/Polyamide 6.6, Black

Vendor Description

Innovative design and engineered materials make Ty-Rap® cable ties the perfect fastening solution where performance really matters. Often imitated but never equaled, Ty-Rap® cable ties provide superior performance in any application.

Specifications

Brand Name
Thomas & Betts
Bundle_Diameter
0.08 to 4.09
Color
Black
Country of Origin
HU
Lock_Mechanism
Stainless Steel Barb
Material
Nylon/Polyamide 6.6
Package_Quantity
500
Special Features

  • 14-1/2 in L nominal
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads
  • Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
  • Provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed
  • Ribbed and stippled body grips the bundle and prevents slippage, rounded edges protect insulation, preventing sharp edges from damaging cables
  • Smooth, notch less body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties
  • The no slip tail provides easy grip during tensioning, Ty-Rap® ties feature a unique friction surface designed to reduce slippage during installation
  • Weather and UV-resistant
Sub_Brand
Ty-Rap
Temperature_Rating
-40 to 185
Tensile_Strength
40
Thickness
0.05
Trade_Size
14-1/2
Type
2-Piece Standard
