Thomas & Betts Thomas & Betts RC707
Thomas & Betts RC707
Kirby Risk #: 479102
UPC: 78621082001, 786210820019, 30786210820010
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

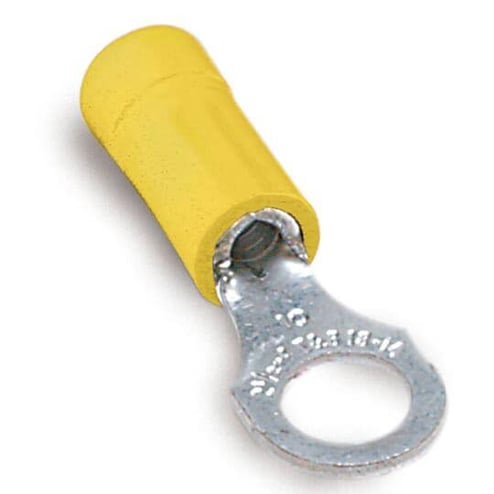

Vinyl Insulated Ring Terminal, Length 1.17 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
Modified Industry Description
INS VINYL RING TERM, 12-10, 5/16, Y
AD Description
Sta-Kon® RC707 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.17 in L, Brazed Seam Barrel, Copper, Yellow
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Yellow
|
| Conductor Size |
12 to 10
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Package_Quantity |
500
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
5/16
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
