Thomas & Betts Thomas & Betts FS116B
Thomas & Betts FS116B
Kirby Risk #: 478913
UPC: 78621011639, 786210116396, 50786210116391
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

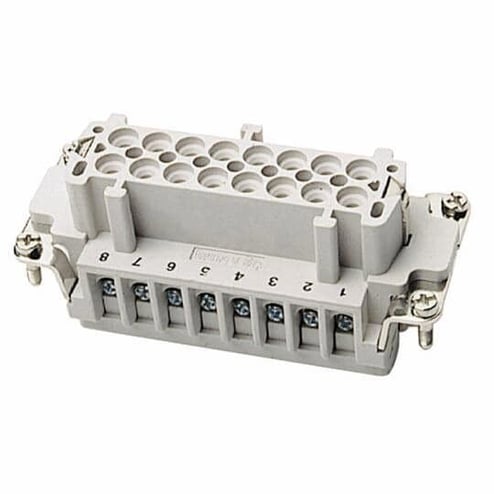

Female screw terminal insert. For use with B series, 16 contacts with ground.
Modified Industry Description
FEMALE SCREW TERMINAL INSERT FOR B SERIES, 16 CONTACTS W/ GROUND
AD Description
Pos-E-Kon® FS116B B Series Standard Terminal Insert, 16 Positions, 20 to 14 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Vendor Description
Pos-E-Kon® DIN-standard rectangular pin and sleeve connectors are modular for easy assembly at the customer site.
Specifications
| Amperage Rating |
16
|
|---|---|
| Application |
For use with B series
|
| Brand Name |
Thomas & Betts
|
| Conductor Size |
20-14 AWG
|
| Country of Origin |
DE
|
| Material |
Thermoplastic
|
| NEMA_Rating |
NONE;NONE
|
| Number_Of_Poles |
16 With Ground
|
| Number_Of_Wires |
16 With Ground
|
| Special Features |
|
| Standard |
CSA 70013
|
| Sub_Brand |
Pos-E-Kon
|
| Temperature_Rating |
-40 to 257
|
| Type |
Terminal Inserts-Female
|
| Voltage Rating |
600
|
