Thomas & Betts Thomas & Betts TY25M


Description

Industry Description

High Performance Cable Tie for Indoor applications, Natural Color Nylon 6.6, Length of 186mm (7.3 Inches) for Bundle Diameter up to 48mm (1.89 Inches), Width of 4.67mm (0.184 Inch), Tensile Strength Rating of 220 Newtons (50 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Bulk Pack

Modified Industry Description

7 IN NUTURAL NYLON CABLE TIE WITH STAINLESS STEEL LOCKING

AD Description

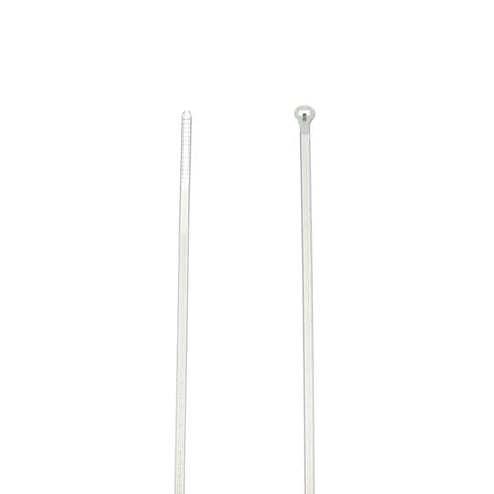

Ty-Rap® TY25M High Performance Standard Cable Tie, 7.31 in L x 0.184 in W x 0.043 in THK, Nylon/Polyamide 6.6, Natural

Vendor Description

Innovative design and engineered materials make Ty-Rap® cable ties the perfect fastening solution where performance really matters. Often imitated but never equaled, Ty-Rap® cable ties provide superior performance in any application.

Specifications

Brand Name
Thomas & Betts
Bundle_Diameter
0.138 to 1.77
Color
Natural
Country of Origin
MUL
Lock_Mechanism
Stainless Steel Barb
Material
Nylon/Polyamide 6.6
Package_Quantity
1000
Special Features

  • 7 in L nominal
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads
  • Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
  • Provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed
  • Ribbed and stippled body grips the bundle and prevents slippage, rounded edges protect insulation, preventing sharp edges from damaging cables
  • Smooth, notch less body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties
  • The no slip tail provides easy grip during tensioning
  • Ty-Rap® ties feature a unique friction surface designed to reduce slippage during installation
Standard
UL E49405, CSA 2884
Sub_Brand
Ty-Rap
Temperature_Rating
-40 to 185
Tensile_Strength
50
Thickness
0.043
Trade_Size
7
Type
High Performance Standard
