Thomas & Betts Thomas & Betts 3303M


Description

Industry Description

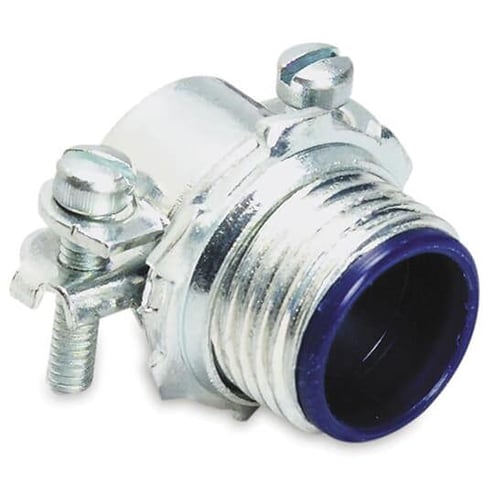

Sheathed Cable Fitting, Straight, Knockout Size 3/4 Inch, Nylon Insulated, Two Screw Connector, Steel with Zinc Plating

Modified Industry Description

3/4 INS 2SCR NMC CONN

AD Description

T&B® 3303M 2-Screw Cable Connector, 3/4 in Trade, 0.53 to 0.75 in Cable Openings, Steel, Electro-Plated Zinc

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
To Connect Non-Metallic Sheathed Cable and Flexible Cord to a Box or an Enclosure.
Brand Name
Thomas & Betts
Color
Metallic
Connection
Straight
Country of Origin
US
Finish
Electro Plated Zinc
Insulation
Nylon
Material
Steel
Special Features

  • 3/4 in knockout
  • An extra lip on the saddle closes the unused part of the connector opening
  • Non-metallic service entrance cable
  • Nylon insulated
  • Rounded cable grip and smooth bushing protect the cable sheath and wire insulation
  • Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable
Standard
UL E23013, CSA 2884
Sub_Brand
Thomas & Betts
Trade_Size
3/4
Type
2-Screw
Width_2
5.8000
Width_3
8.6000
