Thomas & Betts Thomas & Betts LTA07520


Description

Industry Description

3/4 Inch Steel Liquidtight Adapter, Thread Size 1-3/16 Inch-18 UNEF-2B, Rigid Conduit to Metric

Modified Industry Description

3/4 LT ADAPTER

AD Description

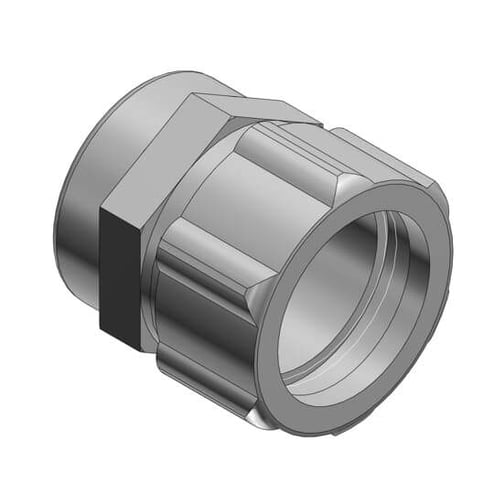

T&B® Shureseal™ LTA07520 Straight Liquidtight Conduit Adapter, 3/4 in, UNEF-2B Thread, Steel, Zinc Plated

Vendor Description

T&B® liquidtight fittings for flexible conduits are suitable for a wide range of installations. Our liquidtight fittings are designed to stand up to demanding wet and corrosive environments, including power generation, petrochemical, paper mills, food, beverage, pharmaceutical plants and anywhere high performance is required.

Specifications

Brand Name
Thomas & Betts
Color
Metallic
Country of Origin
US
Finish
Zinc Plated
Insulation
Non Insulated
Material
Steel
Special Features

  • 20, 22 AN-MS connection shell
  • High performance special type fittings for Shureseal liquidtight conduit
  • IP67 rated
  • Liquidtight flexible metal and liquidtight flexible non-metallic fittings with internal threads to accept AN-MS fitting shells
  • Polyamide insulation throat and sealing ring
  • Re-useable and independent replacement parts
  • Rigid conduit to metric
  • The steel ground cone which is screwed into the conduit ensures an excellent earthling continuity and pull-off strength, as well as a very good resistance against vibrations
Standard
E 23018
Sub_Brand
Thomas & Betts
Trade_Size
3/4
Type
Straight
Width_2
5.2000
Width_3
5.2000
