Thomas & Betts Thomas & Betts TY528M


Description

Industry Description

Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum or as a Flexible Cable and Conduit Support, Length of 360.5mm (14.2 Inches), Width of 4.82mm (0.19 Inches), Thickness of 1.4mm (0.05 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds)

Modified Industry Description

14 IN NATURAL NYLON CABLE TIE WITH STAINLESS STEEL LOCKING

AD Description

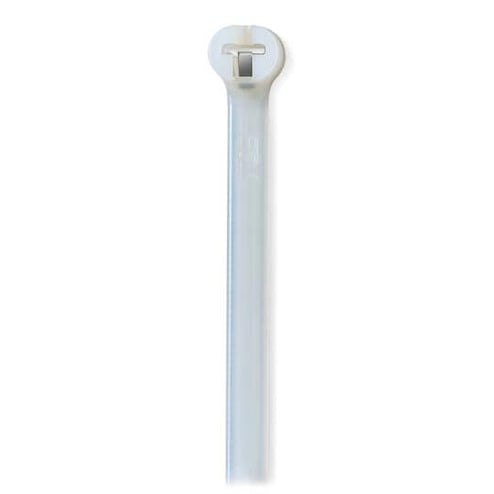

Ty-Rap® TY528M 2-Piece Standard Cable Tie, 14.2 in L x 0.19 in W x 0.055 in THK, Nylon/Polyamide 6.6, Natural

Vendor Description

Innovative design and engineered materials make Ty-Rap® cable ties the perfect fastening solution where performance really matters. Often imitated but never equaled, Ty-Rap® cable ties provide superior performance in any application.

Specifications

Brand Name
Thomas & Betts
Bundle_Diameter
0.138 to 4.01
Color
Natural
Country of Origin
MUL
Lock_Mechanism
Stainless Steel Barb
Material
Nylon/Polyamide 6.6
Package_Quantity
100
Special Features

  • 14 in L nominal
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads
  • Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
  • Provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed
  • Ribbed and stippled body grips the bundle and prevents slippage, rounded edges protect insulation, preventing sharp edges from damaging cables
  • Smooth, notch less body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties
  • The no slip tail provides easy grip during tensioning
  • Ty-Rap® ties feature a unique friction surface designed to reduce slippage during installation
Standard
UL E49405
Sub_Brand
Ty-Rap
Temperature_Rating
-40 to 185
Tensile_Strength
50
Thickness
0.055
Trade_Size
14
Type
2-Piece Standard
