Thomas & Betts Thomas & Betts 60136


Description

Industry Description

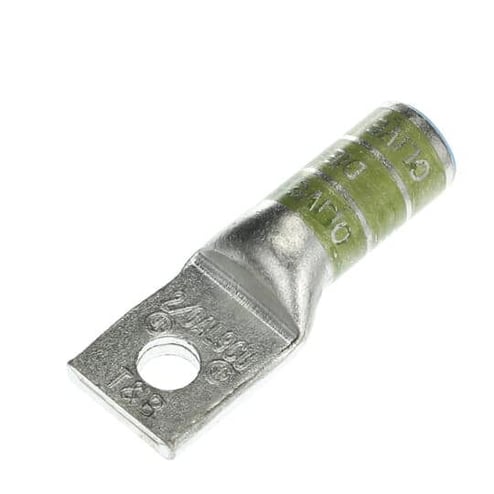

Aluminum One-Hole Lug, Long Barrel, Max 35kV, 2/0 AWG Wire, 3/8 Inch Bolt Size, Tin Plated, Blind End, Die Code 54, Die Color Code Olive

Modified Industry Description

AL 1 HOLE LUG LONG BRL 2/0 AWG 3/8 BOLT OLIVE

AD Description

Color-Keyed® 60136 1-Hole Compression Lug, 2/0 AWG Aluminum/Copper Conductor, Die Code: 54, 3/8 in Stud, Aluminum

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Brand Name
Thomas & Betts
Cable_Size
2/0 AWG
Color
Olive
Conductor Material
Aluminum - Copper
Conductor Size
2/0
Country of Origin
MX
Finish
Tin Plated
Insulation
None
Material
Aluminum
Number_Of_Holes
1
Package_Quantity
5
Special Features

  • Easily matched to the correct Color-Keyed® installing die for positive compressions
  • Electro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance
  • Filled with high temperature oxide inhibiting compound
  • For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
  • Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass
  • High conductivity wrought aluminum construction
  • Long compression areas ensure complete contact
  • Multiple compressions prevent creep of aluminum conductors
Standard
UL E9809
Stud_Size
3/8
Sub_Brand
Color-Keyed
Temperature_Rating
90
Tongue_Angle
Straight
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
