Thomas & Betts Thomas & Betts 3112
Thomas & Betts 3112
Kirby Risk #: 478353
UPC: 78621003112, 786210031125, 30786210031126
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

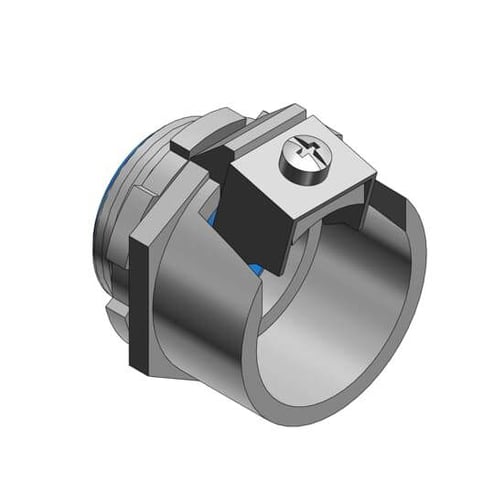

Metal-Clad and Armored Cable Fitting, Straight, Trade Size 1/2 Inch, Knockout Size 1/2 Inch, Cable Range 0.670 to 0.920 Inch, Steel with Zinc Plating, Nylon Insulated
Modified Industry Description
1/2 IN STRAIGHT Tite-Bite Connector Malleable
AD Description
T&B® Tite-Bite® 3112 Insulated Cable Connector, 1/2 in Trade, 1/2 in Knockout, 0.67 to 0.92 in Cable Openings, Steel, Electro Plated Zinc
Vendor Description
For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.
Specifications
| Application |
For use with Armored Cable and Flexible Metal Conduit.
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Color |
Metallic
|
| Conductor Range |
0.670 - 0.920 Inch
|
| Connection |
Straight
|
| Country of Origin |
US
|
| Finish |
Electro-Plated Zinc
|
| Insulation |
Nylon
|
| Material |
Steel
|
| Special Features |
|
| Standard |
UL E23018, CSA 2884
|
| Sub_Brand |
Thomas & Betts
|
| Trade_Size |
1/2
|
| Type |
Insulated
|
| Width_2 |
9.0000
|
| Width_3 |
8.6000
|
