Thomas & Betts Thomas & Betts 2675


Description

Industry Description

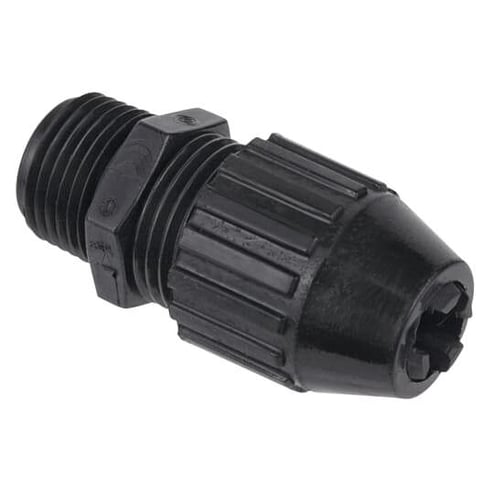

Liquidtight Cord Connector, 3/4 Inch, Straight, Cord Range 0.660 to 0.780 Inch, Meets Coast Guard CG293, Nylon, Black

Modified Industry Description

3/4 IN LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, CABLE RANGE 0.660 TO 0.780 IN, STRAIGHT NYLON

AD Description

T&B® Black Beauty® 2675 Strain Relief Straight Liquidtight Cord Connector, 3/4 in Trade, 0.66 to 0.78 in Cable Openings, Nylon

Vendor Description

Black Beauty® non-metallic cord connector offers the convenience of tool-free installation, with a segmented chuck for high mechanical pullout performance and neoprene bushings for a secure, Liquidtight® installation.

Specifications

Application
To Connect Flexible Cord to a Box or Enclosure and Provide Adequate Strain Relief.
Brand Name
Thomas & Betts
Color
Black
Conductor Range
.660 - .780
Country of Origin
US
Material
Nylon
Special Features

  • 0.62 in L thread
  • 0.79 in Dia throat
  • Hand tightens, no tools needed for assembly
  • Neoprene bushing
  • Non-metallic
  • Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket
  • Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. Class I, Div 2, Class II, Div 1 & 2, Class III, Div 1 & 2, NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
Standard
UL E13938, CSA
Sub_Brand
Thomas & Betts
Temperature_Rating
-34 to 105
Trade_Size
3/4
Type
Strain Relief Straight
Width_2
11.0000
Width_3
10.5000
