Thomas & Betts Thomas & Betts 54815


Description

Industry Description

Copper Two-Way Splice, Long Barrel, Max 35kV, 350 kcmil, Tin Plated, Die Code 71, Die Color Code Red

Modified Industry Description

CU 2 WAY SPICE CONN 350 KCMIL AWG RED

AD Description

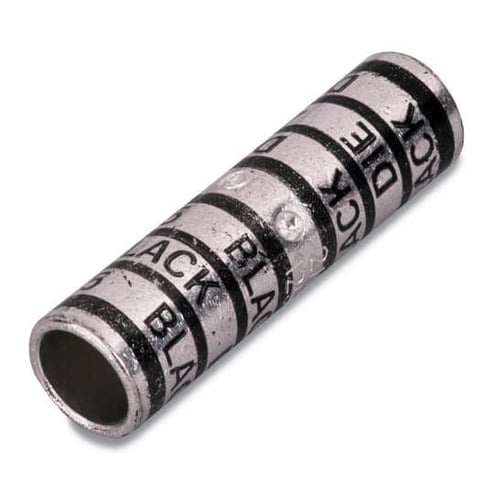

Color-Keyed® 54815 2-Way Long Barrel Splice Connector, 350 kcmil Copper Conductor, Die Code: 71, 3-3/4 in L, Copper

Vendor Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.

Specifications

Application
Applications certified to 600 V and recommended up to 35 kVÂ¥
Brand Name
Thomas & Betts
Color
Red
Conductor Type
Copper
Conductor Size
350
Country of Origin
MX
Die_Code
71
Finish
Tin-Plated
Material
Copper
Outside_Diameter
0.95
Package_Quantity
10
Special Features

  • 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
  • 35 kV voltage rating
  • 650/24 = 262 kcmil wire size flex
  • Color coded for correct matching of installing die and connector
Standard
UL E9809, CSA 4503
Sub_Brand
Color-Keyed
Type
2-Way Long Barrel
Voltage Rating
600
