Thomas & Betts Thomas & Betts 54510
Thomas & Betts 54510
Kirby Risk #: 478012
UPC: 78621054510, 786210545103, 30786210545104
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

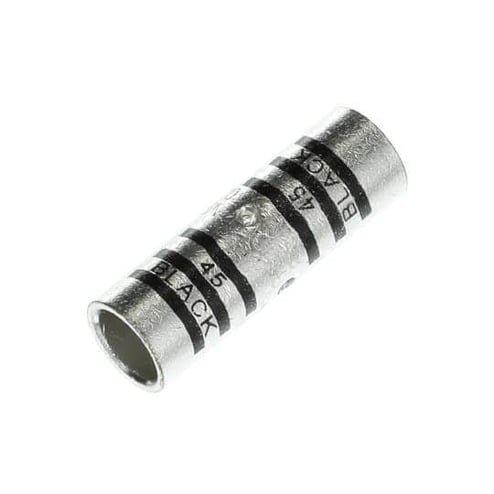

Copper Two-Way Splice, Standard Barrel, Max 35kV, Wire Size 2/0 AWG, Tin Plated, Die Code 45, Die Color Code Black
Modified Industry Description
2 WAY SPLICE CONNECTOR 2/0 AWG
AD Description
Color-Keyed® 54510 2-Way Standard Barrel Splice Connector, 2/0 AWG Copper Conductor, Die Code: 45, 1-3/4 in L, Copper
Vendor Description
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Specifications
| Application |
Applications certified to 600 V and recommended up to 35 kVÂ¥
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Color |
Black
|
| Conductor Type |
Copper
|
| Conductor Size |
2/0
|
| Country of Origin |
MX
|
| Die_Code |
45
|
| Finish |
Tin-Plated
|
| Material |
Copper
|
| Outside_Diameter |
0.57
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Color-Keyed
|
| Type |
2-Way Standard Barrel
|
| Voltage Rating |
600
|
