Thomas & Betts Thomas & Betts 2673


Description

Industry Description

Liquidtight Cord Connector, 1/2 Inch, Straight, Cord Range 0.400 to 0.560 Inch, Meets Coast Guard CG293, Nylon, Black

Modified Industry Description

1/2 BLACK BEAUTY CORD FIT .400-.560

AD Description

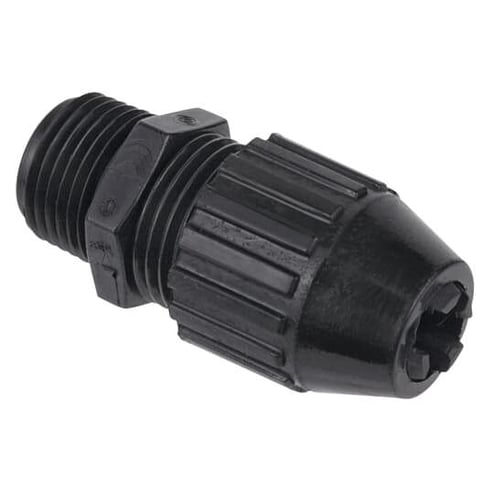

T&B® Black Beauty® 2673 Strain Relief Straight Liquidtight Cord Connector, 1/2 in Trade, 0.4 to 0.56 in Cable Openings, Nylon

Vendor Description

Black Beauty® non-metallic cord connector offers the convenience of tool-free installation, with a segmented chuck for high mechanical pullout performance and neoprene bushings for a secure, Liquidtight® installation.

Specifications

Application
To Connect Flexible Cord to a Box or Enclosure and Provide Adequate Strain Relief.
Brand Name
Thomas & Betts
Color
Black
Conductor Range
.400 - .560
Country of Origin
US
Material
Nylon
Special Features

  • 0.55 in Dia throat
  • 0.6 in L thread
  • Hand tightens, no tools needed for assembly
  • Neoprene bushing
  • Non-metallic
  • Remove sufficient outer covering of cable to permit conductors to pass thru fitting body
  • Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket
  • Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. Class I, Div 2, Class II, Div 1 & 2, Class III, Div 1 & 2, NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
Standard
UL E13938, CSA
Sub_Brand
Thomas & Betts
Temperature_Rating
-34 to 105
Trade_Size
1/2
Type
Strain Relief Straight
Width_2
9.0000
Width_3
8.5000
