Thomas & Betts Thomas & Betts 2564


Description

Industry Description

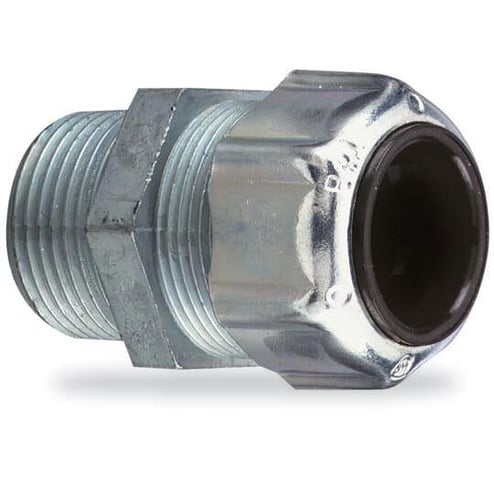

Liquidtight Strain Relief Cord Connector, 1-1/2 Inch, Straight, Cord Range 1.187 to 1.375 Inch, Die Cast Zinc

Modified Industry Description

1 1/2 IN LIQUIDTIGHT STRAIN RELIEF CORD CONNECTOR, CABLE RANGE 1.187 TO 1.375 IN, DIE CAST ZINC

AD Description

T&B® 2564 Ranger® Strain Relief Straight Liquidtight Cord Connector, 1-1/2 in Trade, 1.187 to 1.375 in Cable Openings, Die Cast Zinc, Zinc Plated

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
Suitable for Use In Hazardous Locations Where General Purpose Equipment is Specifically Permitted by NEC 501-4(B).
Brand Name
Thomas & Betts
Cable_Type
S/SO
Color
Metallic
Conductor Range
1.18 - 1.37
Country of Origin
CA
Finish
Zinc Plated
Material
Die Cast Zinc
Special Features

  • 1-17/16 in Dia throat
  • 11/16 in L thread
  • Extended range with superior strain relief
  • Form a mechanical grip and water- and/or oil-resistant seal for cord and unarmored or jacketed armored round cables
  • Form a non-slip connection or termination for flexible cord, cable (armored or unarmored)
  • Gland nut designed to restrict cable bending
  • Provide grounding continuity of cable armor
  • Reduced overall size, fits into tighter spaces
  • S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
  • Steel gland and neoprene bushing
Standard
E 13938
Sub_Brand
Thomas & Betts
Temperature_Rating
105
Trade_Size
1-1/2
Type
Strain Relief Straight
Width_2
6.6000
Width_3
5.1000
