Thomas & Betts Thomas & Betts 9P34U0


Description

Industry Description

DuraGard Male Plug, 30 Amp, 3 Pole 4 Wire, 600VAC/250VDC

Modified Industry Description

30A 600V 3 POLE 4 WIRE MALE PIN PLUG

AD Description

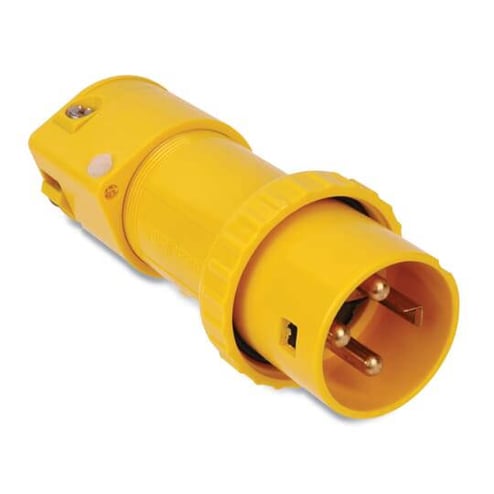

Russellstoll® DuraGard® 9P34U0 Waterproof Male Plug, 600 VAC/250 VDC, 30 A, 3 Poles, 4 Wires

Specifications

Amperage Rating
30
Application
For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment.
Brand Name
Thomas & Betts
Country of Origin
MX
Frequency_Rating
60 Hz
Material
DuraV®
Number_Of_Poles
3
Number_Of_Wires
4
Special Features

  • CDA 360 solid brass pin and sleeve contacts
  • Durable, tough and flame safety rated housings for superior performance in corrosive environments
  • DuraV® high impact body and collars
  • Easy to wire with drop-in rear loaded interiors using no assembly screws versus 3-5 or more with other connectors
  • For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment
  • For use with computer systems data center and OEM products such as raised floor applications, main power connections and critical power for test, instrumentation, telephone and medical equipment
  • For washdown and light marine applications watertight/waterproof such as food processing plants, bottling and beverage plants, pulp and paper factories, pharmaceutical manufacturing, barge and workboat applications and outdoor construction sites
  • Not just watertight, waterproof for washdown duty (DurORing Sealing) that eliminates the need for costly weather boots or adapters
  • Safe and reliable power connections: pin and sleeve, voltage polarized for more power operating cooler and ground pin keyed for voltage polarization (O-ring sealed)
  • Thermoset interiors
Sub_Brand
Russellstoll
Type
Waterproof
Voltage Rating
600/250
