Thomas & Betts Thomas & Betts ADR80
Thomas & Betts ADR80
Kirby Risk #: 477532
UPC: 78378661038, 783786610389, 30783786610380
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Type ADR-ALCUL Single-Conductor, One-Hole Mount for Conductor Range Max 800 kcmil, Min 300 kcmil
Modified Industry Description
300 TO 800 MCM MECHANICAL TERMINAL LUG, 1 CONDUCTOR, 1 HOLE
AD Description

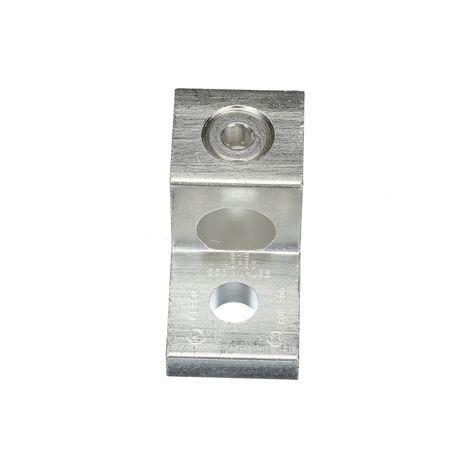

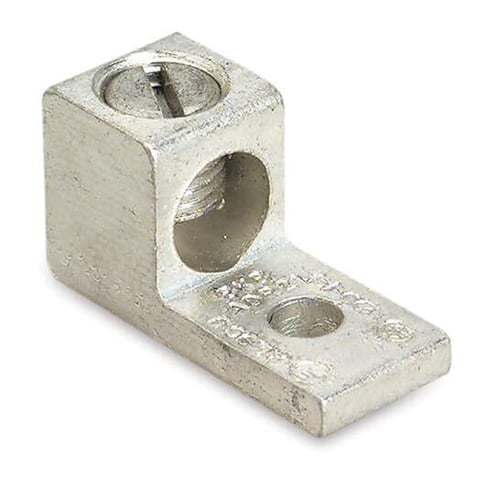

Blackburn® ADR80 Type ADR-ALCUL Dual-Rated Mechanical Connector, 300 to 800 kcmil Aluminum/Copper Conductor, 5/8 in Stud, 1 Bolt Holes, Aluminum
Vendor Description
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Conductor_Range_Main_Primary |
300-800
|
| Conductor Size |
300 to 800
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Aluminum
|
| Number_Of_Mounting_Holes |
1
|
| Package_Quantity |
4
|
| Poles |
1
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
5/8
|
| Sub_Brand |
Blackburn
|
| Type |
Type ADR-ALCUL Dual Rated
|
| Voltage Rating |
600
|
