Thomas & Betts Thomas & Betts L125H
Thomas & Betts L125H
Kirby Risk #: 477474
UPC: 78378613007, 783786130078, 00783786130078, 30783786130079
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Type L - Copper Single Conductor, One-Hole Mount, Hex, Conductor Range 8 Sol-1/0 Str, Length 1-1/2 Inches, Width 47/64 Inch, Height 3/4 Inch
Modified Industry Description
8 TO 1/0 AWG COPPER 1 HOLE LUG
AD Description

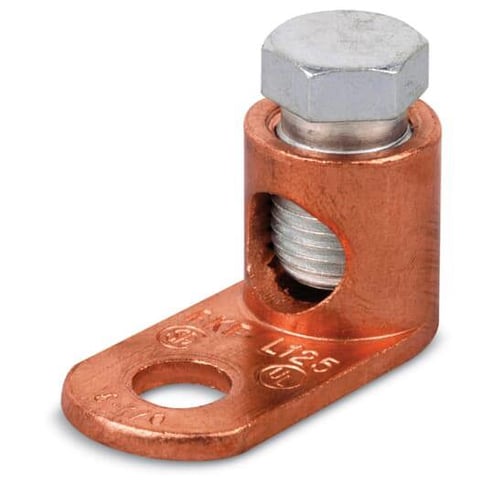

Blackburn® L125H Type L Mechanical Connector, 8 to 1/0 AWG Stranded Solid Copper Conductor, 21/64 in Stud, 1 Bolt Hole, Copper
Vendor Description
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Conductor_Range_Main_Primary |
8 - 1/0
|
| Conductor Size |
8 to 1/0
|
| Country of Origin |
MX
|
| Material |
Copper
|
| Number_Of_Mounting_Holes |
1
|
| Package_Quantity |
1
|
| Poles |
1
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
21/64
|
| Sub_Brand |
Blackburn
|
| Type |
Type L
|
