Thomas & Betts Thomas & Betts L125BB
Thomas & Betts L125BB
Kirby Risk #: 477473
UPC: 78378613003, 783786130030, 30783786130031, 60783786130032
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Type L - Copper Single Conductor, One-Hole Mount for Conductor Range 8 Sol.-1/0 Str.
Modified Industry Description
1 TO 1/0 AWG COPPER 1 HOLE LUG
AD Description

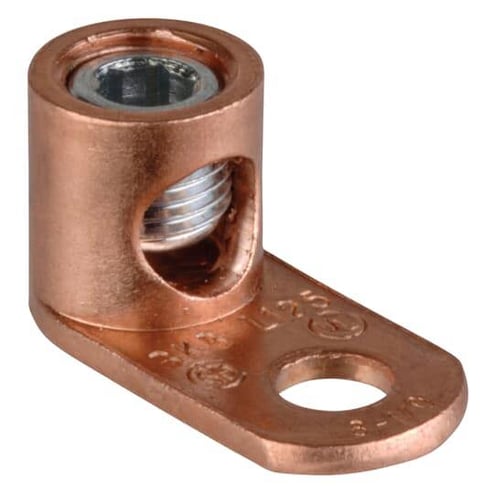

Blackburn® L125BB L Series Non-Insulated Compression Lug, 8 to 1/0 AWG Stranded/Solid Copper Conductor, 1 Bolt Holes, Copper
Vendor Description
Blackburn® is a complete and reliable line-of overhead, grounding mechanical and compression connectors that respond to a broad range of construction needs.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Cable_Size |
8 Sol.-1/0 Str.
|
| Conductor_Range_Main_Primary |
8 - 1/0
|
| Conductor Size |
8 to 1/0
|
| Country of Origin |
MX
|
| Insulation |
None
|
| Material |
Copper
|
| Number_Of_Holes |
One-Hole
|
| Number_Of_Mounting_Holes |
1
|
| Package_Quantity |
100
|
| Poles |
1
|
| Special Features |
|
| Standard |
UL 486A tested
|
| Sub_Brand |
Blackburn
|
| Type |
1-Hole Non-Insulated
|
| Voltage Rating |
Voltage Rating does not apply
|
