Thomas & Betts Thomas & Betts GUV2021


Description

Industry Description

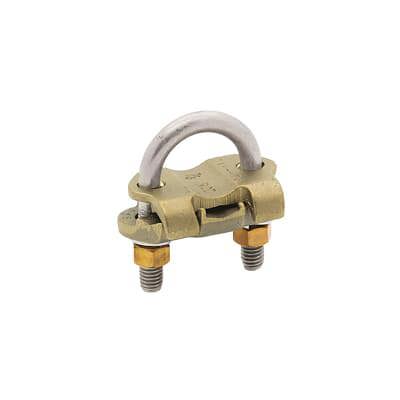

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0, Rod Size 2 to 2-3/8 Inches, IPS Pipe Size Max 2 Inches, Length 4-7/16 Inches, Width 3-11/16 Inches, Depth 1-9/16 Inches

Modified Industry Description

U BOLT GRD CLAMP

AD Description

Blackburn® GUV2021 Type GUV Non-Insulated U-Bolt Grounding Clamp, 2 to 2-3/8 in Rod, 4 to 2/0 AWG Conductor, Copper

Vendor Description

Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.

Specifications

Brand Name
Thomas & Betts
Conductor Material
Copper
Conductor Size
4 to 2/0
Country of Origin
IN
Insulation
None
Material
Copper
Package_Quantity
3
Special Features

  • All components cast or forged from copper alloy
  • Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
  • GUV body components are cast or forged from copper alloy and U-bolts are stainless steel
  • Listed for direct burial in earth or concrete
  • Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area
Standard
UL E3060, CSA 12798
Sub_Brand
Blackburn
Type
Type GUV Non-Insulated
