Thomas & Betts Thomas & Betts ADR21
Thomas & Betts ADR21
Kirby Risk #: 477077
UPC: 78378661008, 783786610082, 30783786610083
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range 14 AWG-2/0 Str, Length 1-15/32 Inches, Width 5/8 Inch, Height 25/32 Inch, 1/4 Inch Bolt Hole, Slotted Screw, Tin Plated
Modified Industry Description
14 TO 2/0 AWG MECHANICAL TERMINAL LUG, 1 CONDUCTOR, 1 HOLE
AD Description

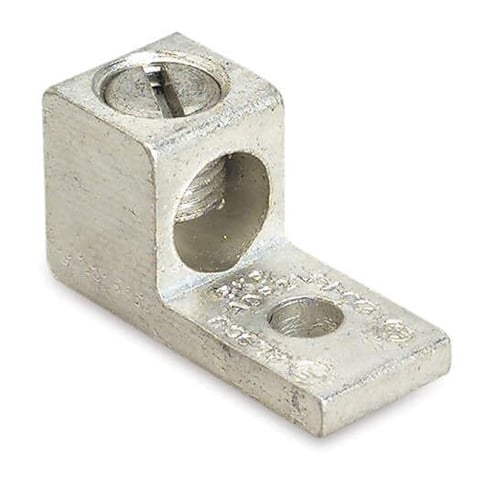

Blackburn® ADR21 Type ADR-ALCUL Dual Rated Mechanical Connector, 14 to 2/0 AWG Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
Vendor Description
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Conductor_Range_Main_Primary |
14 - 2/0
|
| Conductor Size |
14 to 2/0
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Aluminum
|
| Mounting_Hole_Spacing |
1/4 in
|
| Number_Of_Mounting_Holes |
1
|
| Package_Quantity |
25
|
| Poles |
2
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
1/4
|
| Sub_Brand |
Blackburn
|
| Type |
Type ADR-ALCUL Dual Rated
|
| Voltage Rating |
600
|
