Thomas & Betts Thomas & Betts APS02
Thomas & Betts APS02
Kirby Risk #: 477061
UPC: 78378620142, 783786201426, 00783786201426, 30783786201427
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Type APS Tin-Plated Aluminum Dual-Rated Split-Bolt Connector for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 2-8 Str.
Modified Industry Description
AL SPLIT - BOLT 2 - 8 AWG
AD Description

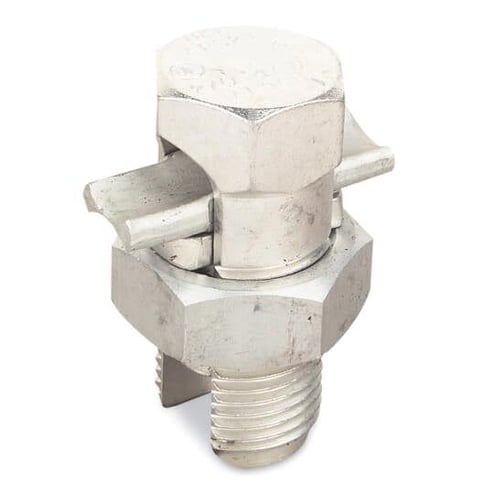

Blackburn® APS02 Type APS Dual Rated Split Bolt Connector, 8 to 2 AWG Stranded Aluminum/Copper Conductor, 0.6875 x 1.63 in, Aluminum
Specifications
| Application |
Splicing, tapping or terminating conductors in power and grounding electrical connection.
|
|---|---|
| Bolt_Size |
0.6875 x 1.63
|
| Brand Name |
Thomas & Betts
|
| Color |
Metallic
|
| Conductor_Range_Main_Primary |
2-8 AWG
|
| Conductor_Range_Tap_Secondary |
2-8 AWG
|
| Conductor Size |
8 to 2
|
| Country of Origin |
MUL
|
| Finish |
Electro-Plated Tin
|
| Material |
Aluminum
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Blackburn
|
| Temperature_Rating |
90
|
| Type |
Type APS Dual Rated
|
| Voltage Rating |
600
|
