Thomas & Betts Thomas & Betts CTL6-214
Thomas & Betts CTL6-214
Kirby Risk #: 477028
UPC: 78378613119, 783786131198, 30783786131199
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

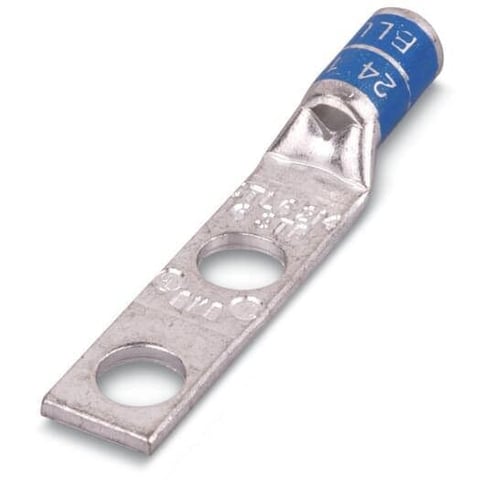

Type CTL Copper Two-Hole Lug, Short Barrel, Max 35kV, Wire Size 6 Str or #6 Weld, 1/4 Inch Bolt Size, Tin Plated, Die Color Code Blue
Modified Industry Description
1/4 IN 2 HOLE BLUE COPPER LUG, 6 AWG OR 6 WELDED, SHORT BARREL
AD Description
Blackburn® CTL6-214 2-Hole Compression Lug, 6 AWG Copper/Stranded Conductor, 1/4 in Stud, Copper
Vendor Description
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Cable_Size |
6 Str.
|
| Color |
Blue
|
| Conductor Material |
Copper
|
| Conductor Size |
6
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Number_Of_Holes |
2
|
| Package_Quantity |
50
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
1/4
|
| Sub_Brand |
Blackburn
|
| Tongue_Angle |
Straight
|
| Type |
2-Hole
|
| Voltage Rating |
35
|
