Thomas & Betts Thomas & Betts 9R33U0W


Description

Industry Description

DuraGard 30Amp, Watertight, Female Receptical- through 600VAC/250VDC

AD Description

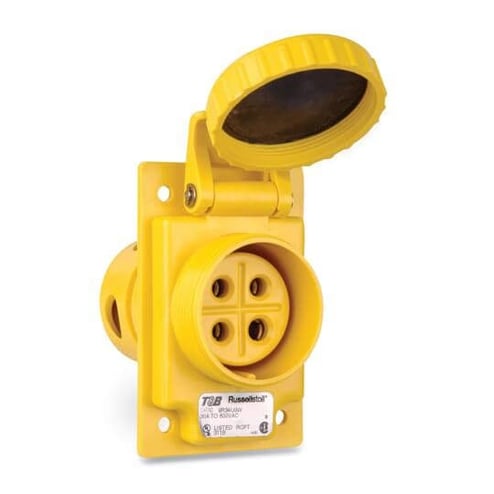

Russellstoll® DuraGard® 9R33U0W Female Reverse Service Standard Watertight Waterproof Pin and Sleeve Receptacle, 600 VAC/250 VDC, 30 A, 2 Poles, 3 Wires

Specifications

Amperage Rating
30
Application
For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment.
Country of Origin
MX
Dimensions
4.14 in H x 2.66 in W x 4.12 in D
Frequency_Rating
60
Length1
3.9400
Material
DuraV®
Number_Of_Poles
2
Special Features

  • 0.7 in ID bushing
  • Computer system interconnections
  • DuraV® high impact body and collars, thermoset interior
  • For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment
  • For use with computer systems data center and OEM products such as raised floor applications, main power connections and critical power for test, instrumentation, telephone and medical equipment
  • For washdown and light marine applications watertight/waterproof such as food processing plants, bottling and beverage plants, pulp and paper factories, pharmaceutical manufacturing, barge and workboat applications and outdoor construction sites
  • Not just "watertight" waterproof for washdown duty (DurORing Sealing) that eliminates the need for costly "weather boots" or "adapters"
Temperature_Rating
-40 to 203
Type
Female Reverse Service Standard Watertight Waterproof
Voltage Rating
600 VAC/250 VDC
