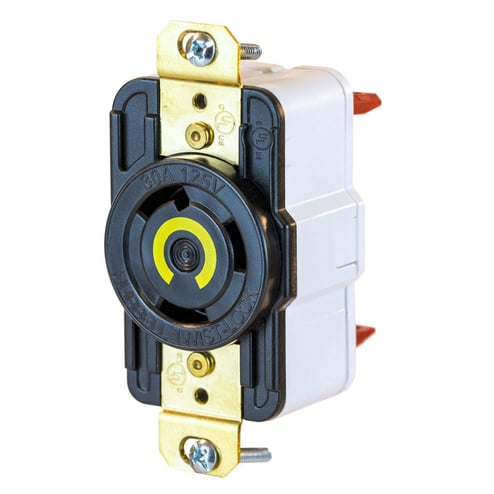

Hubbell Hubbell HBL2610ST
Hubbell HBL2610ST
Kirby Risk #: 3537165
UPC: 78358556956, 783585569567, 00783585569567
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Spring Termination
|
| Conductor Size |
#10 AWG solid, #10 AWG to #8 AWG stranded, #8 AWG compact
|
| Country of Origin |
CN
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Nylon
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
L5-30R
|
| NEMA_Rating |
L5-30R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized
|
| Special Features |
Twist-Lock Receptacle with Spring Termination
|
| Standard |
UL Listed To UL 498;CSA Certified to Specification C22.2 No. 42
|
| Temperature_Rating |
-40 to 75
|
| Type |
Single Receptacle
|
| Voltage Rating |
125
|
| Wattage |
3750
|
