Burndy Burndy BDBLCS6V3
Burndy BDBLCS6V3
Kirby Risk #: 3478995
UPC: 78181067620, 781810676202, 00781810676202
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Distribution block, Three pole Open Style 4 AWG-500 Kcmil (Run), Tap 4 AWG-500 Kcmil (Tap).
AD Description

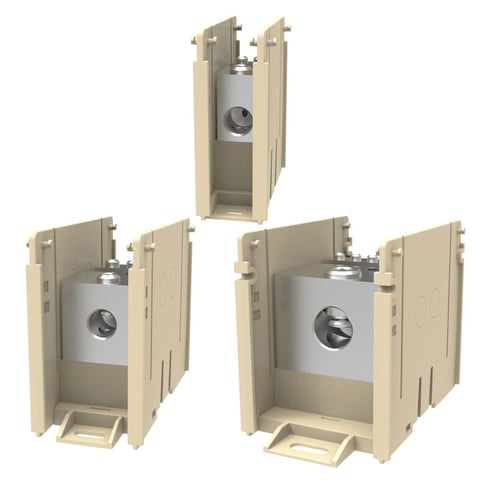

BURNDY® VERSIPOLE™ BDBLCS6V3 Configurable Type BDB Large Open Style Power Distribution Block, 600 VAC, 760 A, 3 Poles, 4 AWG to 500 kcmil Wire, Aluminum
Vendor Description
The VERSIPOLE™ configurable series power distribution blocks are used for splicing and distributing power from primary runs to secondary/branch circuits. They are offered in standard 1, 2 or 3-pole configurations. Each configuration is available in an either an "open" or "finger safe" style. The configurable series can also be designed to accommodate an infinite number of made-to-order combinations.
Specifications
| Amperage Rating |
760
|
|---|---|
| Application |
VERSI-POLE Power Distribution Blocks are designed to provide modular solutions to power distribution applications.
|
| Country of Origin |
US
|
| Insulation |
True
|
| Length1 |
9.5800
|
| Material |
Aluminum
|
| Special Features |
Provides capability to create as many poles as required and Up to 30 tap conductors accommodated
|
| Sub_Brand |
VERSIPOLE
|
| Temperature_Rating |
194?° F
|
| Type |
BDB
|
