Killark Killark FXSX12
Killark FXSX12
Kirby Risk #: 3451571
UPC: 78393619801, 783936198019, 00783936198019
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Killark
Description
Industry Description

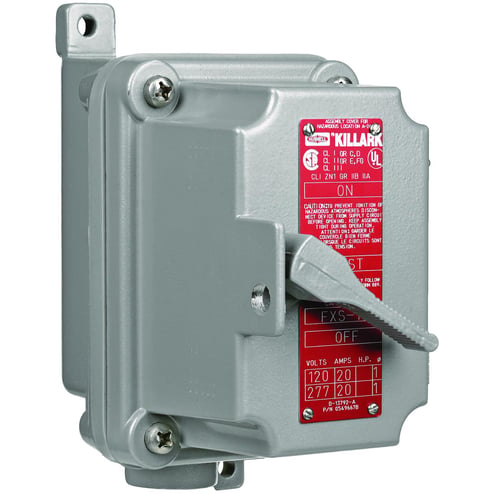

FXSX SERIES - ALUMINUM DEAD-END SINGLE GANG 2-POLE, SINGLE PHASE MANUALMOTOR STARTING SWITCH UNIT - WITHOUT OVERLOAD PROTECTION - HUB SIZE 1/2INCH
Specifications
| Application |
Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. FXSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is required.
|
|---|---|
| Country of Origin |
US
|
| Length1 |
3.6880
|
| Material |
Aluminum, Copper Free (less than 4/10 of 1%)
|
| Number_Of_Poles |
2
|
| Series |
FXSX
|
| Size |
6-13/16 H X 3-11/16 W X 5-11/32 D
|
| Special Features |
FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Provisions for padlocking switch in either "ON" or "OFF" position is standard.
|
| Standard |
UL, CSA, FM APPROVED
|
| Type |
Aluminum manual motor starting switch without overload protection
|
| Voltage Rating |
115/230/575
|
