Burndy Burndy YHR950
Burndy YHR950
Kirby Risk #: 3447058
UPC: 78181013990, 781810139905, 00781810139905
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

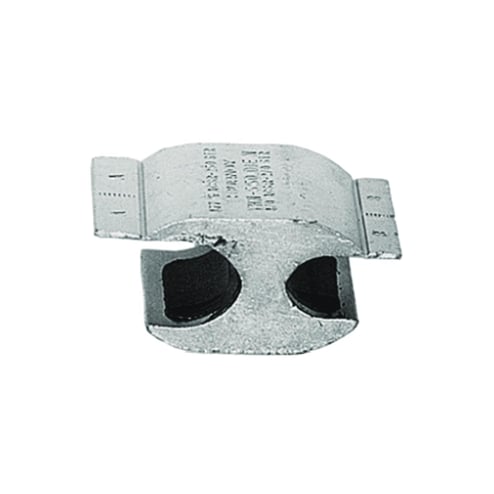

Compression Line Tap for Copper, AL or ACSR and Compact Conductors,groove A(Run) ACSR:556.5 (18/1) - 954 (45/7).
Specifications
| Application |
For Copper, Aluminum Or ACSR And Compact Conductors
|
|---|---|
| Country of Origin |
MX
|
| Length1 |
6.0000
|
| Material |
Aluminum
|
| Special Features |
Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Cable Diameter Range (tap): 0.666 - 1.165 IN, Cable Diameter Range (run): 0.666 - 1.165 IN, Conductor Type: Stranded AWG, ACSR, Shape: H, Tools, Die Set Catalog Number, And (number Of Crimps): Y45 Tool, S-KR Die, (5), Y46 Tool, P-KR Die, (5), Die Index: KR Element A
|
| Sub_Brand |
HYCRIMP
|
| Type |
YHR
|
