Panduit Pan-Net Panduit Pan-Net P08D11M


Description

Industry Description

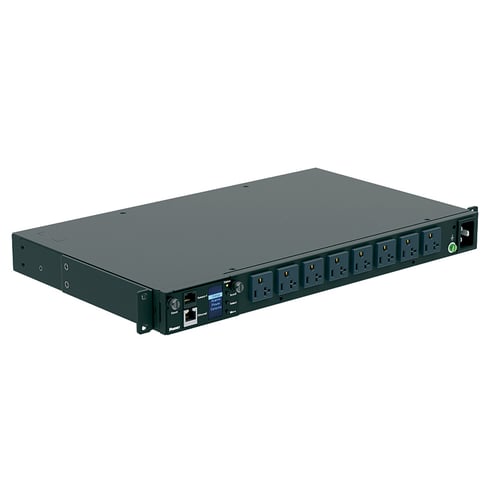

SmartZone™ G5 Monitored Input (MI Series) Rack PDU, 20 A Single Phase, 120V, (8) 5-20R receptacles, NEMA L5-20P plug and measures 1.713"L x 17.461"W x 7.8"D (43.2mm x 444.5mm x 198.1mm). Color: Black

AD Description

Panduit® SmartZone™ G5 P08D11M MI Series 1-Phase Horizontal Intelligent Rack Power Distribution Unit, 100 to 120 VAC, 20 A, 8 Outlets, 10 ft L Cord, Surface Mount

Vendor Description

The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDU's monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit® iPDU's provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors and dual locking power cords are the key to fulfilling mission critical data center needs.

Specifications

Amperage Rating
20
Country of Origin
IND
Frequency_Rating
120
Length1
20.7000
Material
NA
Mounting
Horizontal
Phase
1
Special Features

  • A full breadth offering to seamlessly interoperate with existing building power wiring schemes
  • Digital sensors not only allow for multiple sensors on the same bus, but also identify themselves to the controller to simplify setup and commissioning
  • Easily identify phase to outlet banks to aid in fault isolation or load balancing
  • Meets demands of densely packed IT equipment in rack or cabinet space
  • Meets NEC requirements and installation guidelines for IT equipment
  • Not only physical but hardened digital security, layers within the firmware LDAP, SNMP v3, TLS, encrypted security, allows for Panduit® PDUs to pass standard certified security scans
  • Optimal form factor enables efficient rack space utilization
  • Rack PDUs that have the ability for aggregate power monitoring to quickly identify potential power issues and reclaim available or under utilized power capacity
  • Replace the controller and display module without having to power down the rack
  • Specifically designed for Landlord/Tenant (Co-Lo's) allowing for remote access of real-time, vital statistics and operating information on two separate, secure networks
  • The intelligent PDUs feature an enhanced designed web interface which detects the type of device that you are on and automatically adjusts the screen for an optimal experience
Standard
UL Listed
Sub_Brand
SmartZone?„?
Type
Monitored Input PDU
Wattage
1900
