Dual-Lite Dual-Lite DYN12I


Description

Industry Description

Dynamo Series, Battery Runtime: 90 min, Battery Type: Lithium Iron Phosphate, Color: Gray, Number of Lamps: 2, Lamp Type: LED, Voltage Rating: 120-277 VAC, Wattage: 12 W, Remote Capacity: 6 W, Options: Spectron® Self Diagnostics and 3 Watt LED lamps.

AD Description

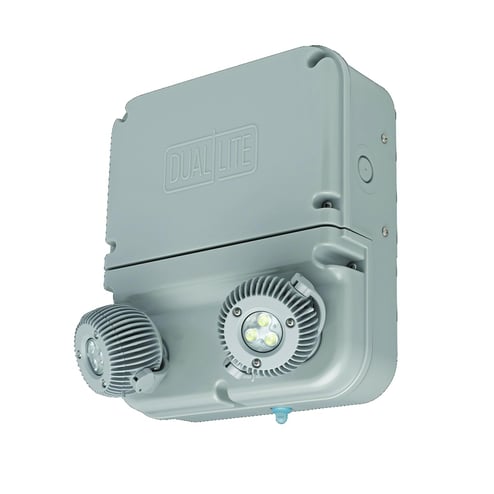

Dual-Lite® DYN12I Dynamo DYN Emergency Light, 3 W LED Lamp, 120 to 277 VAC, 2 Heads, Die Cast Aluminum/Polycarbonate

Vendor Description

The Dynamo DYN series is a highly versatile superior lumen output, industrial application emergency lighting unit, designed to provide a minimum of 90 minutes illumination when primary power is lost.

Specifications

Application
Conditioned Space;Damp location;Wet location;NEMA 4X;Hazardous location;Food Processing;Cold Temperature
Color
Gray
Country of Origin
CN
Environmental_Conditions
Corrosive;Damp Location;Wet Location;Outdoor
Lamp_Type
LED
Length1
12.0000
Lumens
662
Material
Plastic
Mounting
Includes a universal mounting plate which facilitates mounting to a truss or I-beam, pole, column, or wall. Included is a special bracket to ensure positive pole gripping when using bands.
Special Features

  • 90 min full lumen output
  • High lumen, high mounting height
  • LED mean no lamps to replace
  • Long life lithium iron phosphate battery
  • Matching remote heads
  • Remote capacity models have a minimum run-time of 120 min when no remotes are installed
Standard
Wet location listed
Type
Emergency Light
Voltage Rating
120 to 277
Wattage
12
