Burndy Burndy C22HD4/0DB

Name: Burndy C22HD4/0DB
Brand: Burndy
SKU: 3406972
Price: 144.38 USD
Availability: InStock

Burndy C22HD4/0DB

Kirby Risk #: 3406972

UPC: 78181035319, 781810353196, 00781810353196

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

Cast Bronze ground Clamps, 3.60 in L, 1-1/4"- 2" Water Pipe (Run), #8 - 4/0 Ground (Tap).

AD Description

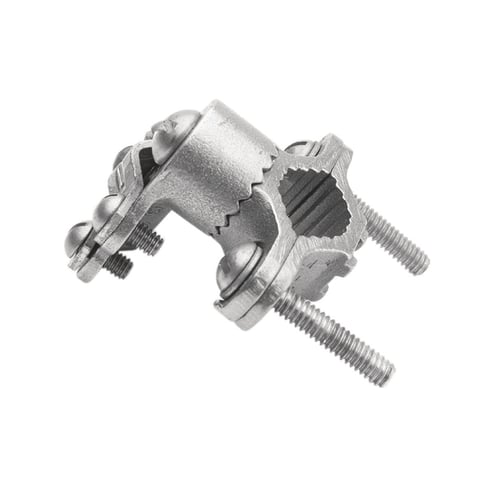

BURNDY® C22HD4/0DB Ground Clamp, 8 to 4/0 AWG Conductor, Cast Bronze Body/Silicon Bronze Screw

Application	For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar And Direct Burial
Country of Origin	IN
Length1	2.6500
Material	Bronze Alloy
Special Features	50 in-lb installation torque Hub swings 360 deg for easy alignment Simply reverse bottom clamp for smaller size rebar or rod, connectors are provided with silicon bronze hardware Zinc plated steel hardware
Standard	UL467
Sub_Brand	CLAMP
Type	WaterPipe Gounding Connectors
