Burndy Burndy YAZV1CTC38FX


Description

Industry Description

Cu compression long barrel flex conductor, single hole/W/ insp window, #1 weld(225/24), #1 AWG, 3/8" stud, Tin plated, Green, 11 index

AD Description

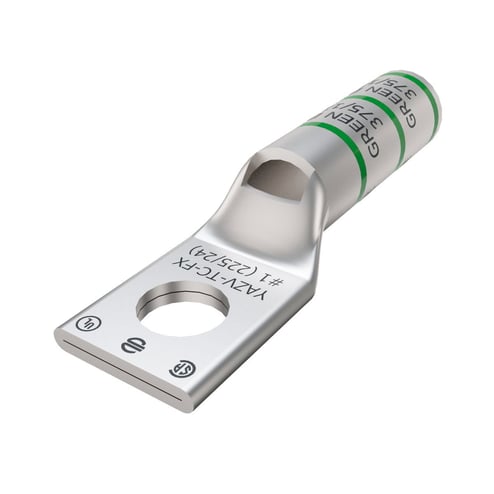

BURNDY® HYLUG™ YAZV1CTC38FX 1-Hole Compression Lug With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11/375, 3/8 in Stud, Tin Copper

Vendor Description

The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35KV. See each catalog page for UL 35kV listings.

Specifications

Application
For Flex Conductors
Country of Origin
US
Length1
2.5900
Material
Copper
Special Features

  • Each connector is clearly marked with the wire size and type, die index, and color coding
  • Manufactured from seamless high conductivity electrolytic copper tubing with heavy duty wall thickness
  • Provides an excellent relationship of the conductor/connector combination to produce a high quality electrical connection with the recommended tooling
  • Provides durable long-lasting corrosion resistance
  • Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
YAZV, Long Barrel
Voltage Rating
35,000
