Burndy Burndy GZ4C38


Description

Industry Description

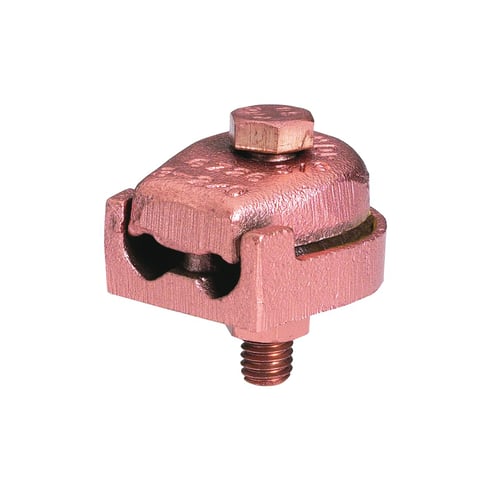

Mechanical Grounding Connector, For Copper Cable to Bar, 8 AWG (Str) - 4 (Str), 3/8" Stud.

AD Description

BURNDY® GZ4C38 Mechanical Grounding Connector, 8 to 4 AWG Conductor, 1/4 in THK Bar, Copper Alloy

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Joining A Wide Range Of Copper Cable To Bar, Direct Burial In Concrete Or Ground
Country of Origin
US
Length1
1.3800
Material
Copper Alloy, Cast
Special Features

  • 240 in-lb installation torque
  • 3-gang/8 in bolt size
  • 8 to 4 AWG stranded (main/primary) conductor size
  • Cable is gripped by curving it around the clamping bolt-in connector groove
  • High copper alloy ground connector for joining a wide range of cable to 1/4 in THK bar
  • Made of high strength copper alloy
  • The high copper alloy cast body and Durium bolts, nuts and lock washers make them suitable for direct burial in concrete or ground
Standard
UL467
Sub_Brand
Mechanical Connector
Type
GZ
