Hoffman Hoffman N210246G050


Description

Industry Description

SpectraCool Narrow Indoor/Outdoor, Lt Gray, Galvanized Sheet Metal

Modified Industry Description

2000 BTU 460V 1 PH

AD Description

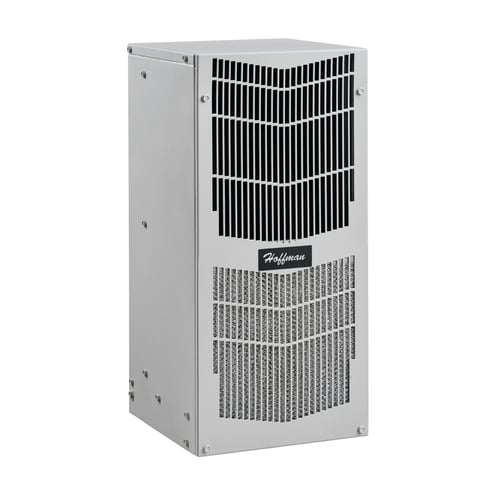

Hoffman Spectracool™ N210246G050 MCL Indoor/Outdoor Enclosure Air Conditioner, 460 VAC, 1.9 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 2000 Btu/hr

Vendor Description

SpectraCool Narrow Air Conditioners provide a space-saving solution for low-depth cabinet needs. Narrow models are designed to fit on 12-in. (300-mm) deep floor- and wall-mount enclosures.

Specifications

Amperage Rating
1.9
Application
Controls and Drives; Power Distribution
Color
Light Gray
Country of Origin
US
Dimensions
25.17 in H x 10 in W x 9.9 in D
Finish
Powder Coated
Frequency_Rating
50/60
Length1
13.5000
Material
Galvanized Sheet Metal
Mounting
Side wall
Mounting_Type
Flange
NEMA_Rating
12 Indoor, dust-resistant
Operating_Temperature
-40-131
Power_Rating
586
Series
MCL
Special Features

  • Air conditioner models include digital display on ambient side
  • Attractive industrial design with minimal use of visible fasteners
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Cutout adapter options for enclosures with GENESIS™ air conditioners enable users to easily transition to the new unit
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications
  • Easy mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Reliable mechanical thermostat on enclosure side of the unit
Sub_Brand
SpectraCool
Temperature_Rating
-40 to 131
Type
INDOOR/OUTDOOR
Voltage Rating
460
