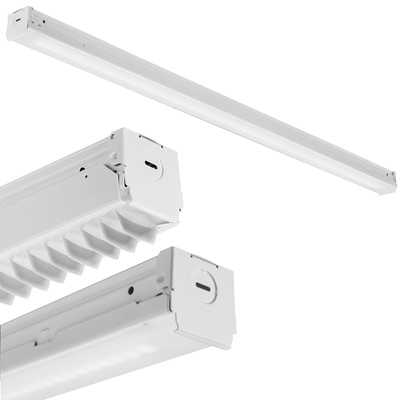

Lithonia Lighting Lithonia Lighting TZL1N L96 14000LM FST MVOLT 50K 80CRI WH


Description

Industry Description

Tandem ZL series LED, 96'' long, 14,000 nominal lumens, Frosted, diffuse, 120V-277V, 5000K, 80 CCT, White finish, SKU - 253WXC

AD Description

Lithonia Lighting® TZL1N L96 14000LM FST MVOLT 50K 80CRI WH Less Reflector Strip Light,) LED Static Lamp, 120 to 277 VAC

Vendor Description

The ZL1N LED strip light delivers the look of a traditional low profile fluorescent strip, but offers features and efficacy beyond conventional technology. Highly efficacious, the ZL1N maximizes savings yet does so without compromising light levels. The ZL series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories ideal for commercial, retail, manufacturing, warehouse, cove and display applications. When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures.

Specifications

Application
Automotive & Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Power & Gas, Religious, Residential, Retail, Sports and Recreation, Transportation, Warehouses
Color
White
Country of Origin
MX
Dimensions
96 in L
Environmental_Conditions
Indoor
Finish
Gloss
Lamp_Type
T8 LED
Length1
96.3100
Lumens
10000
Material
Steel
Mounting
Pendant, Semi-flush, Surface, Suspended
Series
Z Series
Special Features

  • After fabrication, five stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance
  • Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths
  • Compact design channel and cover are formed from code gauge cold-rolled steel
  • Continuous row mounting for aisle applications
  • Easy to install six point row aligner included for continuous row mounting
  • Electronic LED driver is rated for 75 W maximum input
  • LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths
  • Lumen output up to 1500 lumens per feet
  • Luminaire should be installed in applications where ambient temperatures do not exceed 86 deg F
  • Multi-volt input and 0 to 10 VDC dimming standard
  • This fixture is designed to withstand a maximum line surge of 1.5 kV at 0.75 kA combination wave for indoor locations
  • Utilizes high output LED integrated on a two-layer circuit board, ensuring cool running operation
Standard
CSADLC Standard
Type
Lensed
Voltage Rating
120/277
Wattage
104
